Ram Promaster Cupholder Relocation Kit by 603BVan

Relocate the cupholder you already have to a higher more convenient position

Install in under a minute

No drilling

No tools

There when you want it, not when you dont


“Designing Innovative Accessories You’ll Love Having and Look Forward to Using”

I actually like the Ram Promaster cupholder that is mounted in the bottom of the lower instrument panel but not its location. The stock cupholders accomodate different sized drinks and hold them securely without rattling. I doubted that I could create a better cupholder than the ones I already have.

And I wondered about the wisdom of raising them higher. Although I had to bend down to reach my drink, the stock cupholders are low and out of the way. They do not interfere with the ability to enter the aisle and swivels the seats.

There are significant design challenges for a console type cupholder solution. Mounting cupholders higher will interfere with the ability to swivel the seats and enter the aisel. I kept that issue front and center in my thoughts because I own a camper van and didn’t want to forfeit that ability.

I designed the cupholder relocation kit to rapidly relocate the stock cupholders located in the lower instrument panel to a higher more convenient, position. It takes around a minute to perform the process of relocating the cupholder you already have and less than a minute to reverse it to stock condition. It requires no tools or drilling. My design goals for this included

  • Raising the cup holder to a higher, more convenient position

  • Tool less install

  • No-drill required

  • Preserve the ability to enter the aisle and rotate the seats

  • Easily and rapidly reversible to stock (less than a minute)

  • Cupholder supported from below

  • OEM look

Staying true to these design goals was challenging, but it ultimately led to a practical, innovative solution tailored to van life, where space is limited and versatility is key. Although space is limited when the cupholder is raised, it is still possible to enter the aisle and swivel my seats. I can also restore the cupholder to its original factory location whenever I want. I can have it raised on long travel days and take it down at my destination. I dont need to take it down however. You can learn more about the accessory below.

Note: The wireless phone charging pad is not able to be used when the cupholder is relocated. You will need to find an alternate way to secure and charge your phone. (I designed an accessory mounting bar to do this). I have a detailed video below that describes this limitation and others in great detail below. Be sure to watch all the videos below before purchasing the kit to ensure that it is right for you and you understand its benefits and limitations.

Scroll down to learn more and access additional videos

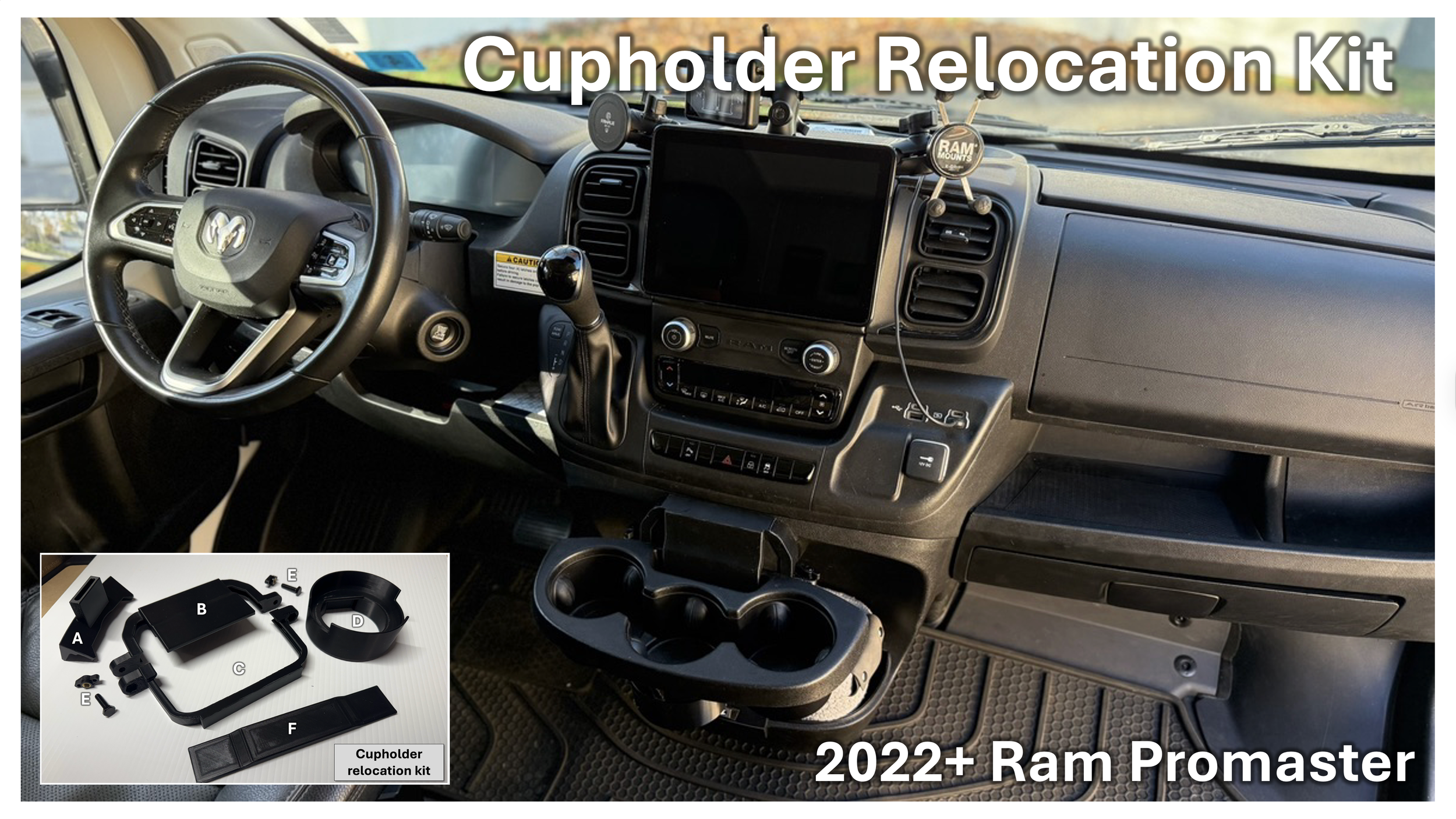

Screenshot 2025-11-07 at 3.03.12 PM.png

Watch these three videos to learn more

Quick demonstration

This video demonstrates how quickly you can relocate the cupholders you already have using the Ram Promaster Cupholder Relocation Kit designed by 603BVan. It is just as easy to uninstall the kit and return your van to factory condition. Concerned about having room to swivel your seats. You can put up for those long road trips and take it down when you get to your destination. No-drill, no-tool, no need to compromise. It is there to enjoy when you need it and not when you don’t. You decide.

Everything you should know about the latest (2025) Cupholder Relocation Kit

This video includes many important details that you should know about the Ram Promoaster Cupholder Relocation Kit as well as demonstrations about how you can install it and check that you will be able to swivel your seats and enter the aisle to your satisfaction BEFORE you buy the product. Here is a list of what is covered in the video. These same chapters can be accessed from within the video description or by using the slider to advance to the section you want to know. I suggest that you watch the entire video.

00:00 Introduction

00:10 Need to Know: Compatibility with your van

00:43 Need to Know: Reuses the cupholder you already have

01:29 Need to Know: Size drink containers

02:00 Need to Know: Wireless charging is DISABLED

02:23Need to Know: Must have other way of securing and charging your phone

02:54Need to Know: Removing your cupholder creates unfinished area

03:45Need to Know: Test if you can swivel your seats, entering aisle (more on this later)

04:38 Need to Know: Measuring to ensure fit (more on this later)

05:30 Need to Know: Areas with rough appearance on kit parts

06:09 Need to Know: Reach out with questions

06:33 COMPATIBILITY AND FIT DISCUSSION

07:10 COMPATIBILITY, LOWER INSTRUMENT PANEL

07:50 REMOVING THE CUPHOLDER

08:24 MOVING AROUND: AISLE / SEAT SWIVEL CHECKS

09:54 COMPATIBILITY, MEASUREMENTS 60 SECOND INSTALL ATTEMPT DEMO VIDEO (FAST DEMO):

10:31 Installation demonstration (speed run) INSTALLATION INSTRUCTION / TEXT BASED

11:52 Pause video and perform steps

11:54 Step 0 - Kit contents

11:58 Step 1 - Remove cupholder, install sleeve

12:02 Step 2 - Install lower bracket

12:06 Step 3 - Install upper bracket

12:10 Step 4 - Secure bracket with T-Nuts

12:14 Step 5 - Assemble and install brace

12:19 Step 6 - Check and adjust

12:22 Step 603 - Enjoy! UNINSTALL DEMO VIDEO (FAST DEMO):

12:26 Uninstall demonstration (speed run) DETAILED INSTALLATION INSTRUCTIONS

13:42 Start of detailed installation video PICTURES / VIDEOS OF INSTALLED KIT

20:43 Pics and short video of installed system

Design, implementation, and use of early prototype

In this video, I describe how I designed and implemented a Cupholder Relocation Kit to relocate the cupholders from its location in the bottom of the lower instrument panel to a higher, more convenient position on the wireless phone mounting location. Users of the kit will forfeit the use of the wireless phone charging capability but will gain a small storage area and more convenient access to the cup holder. Right handed drivers and left-handed passenger will especially appreciate the new location. The video describes how to measure to see if the kit will work in your van as well as how to install and use the kit. This video was created before the final design was complete. The final design available on my Etsy shop uses a 3D printed brace instead of the white plastic cardboard. The final design does not require tools to install either. It uses T-Nuts or Knobs to secure the cupholder assembly.
